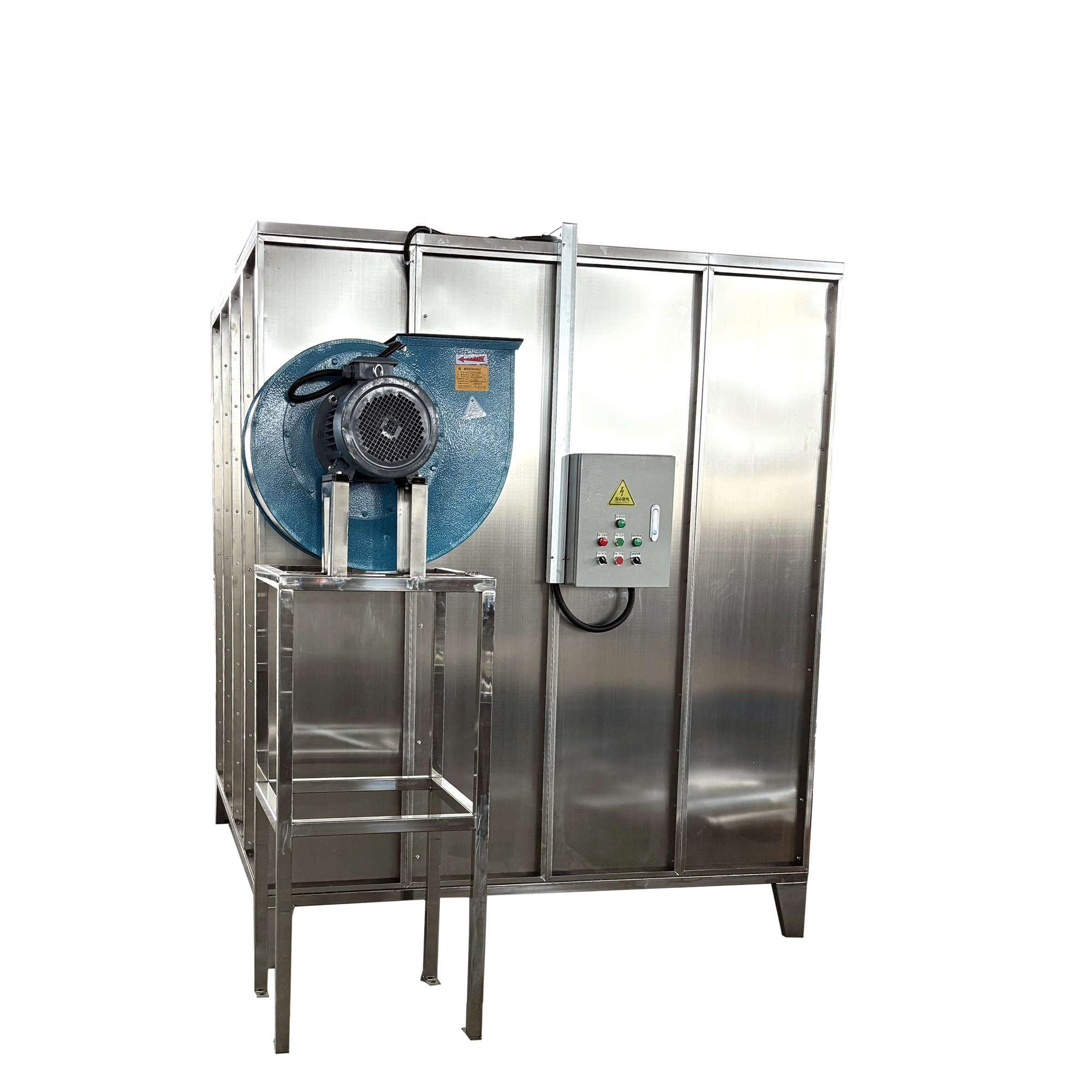

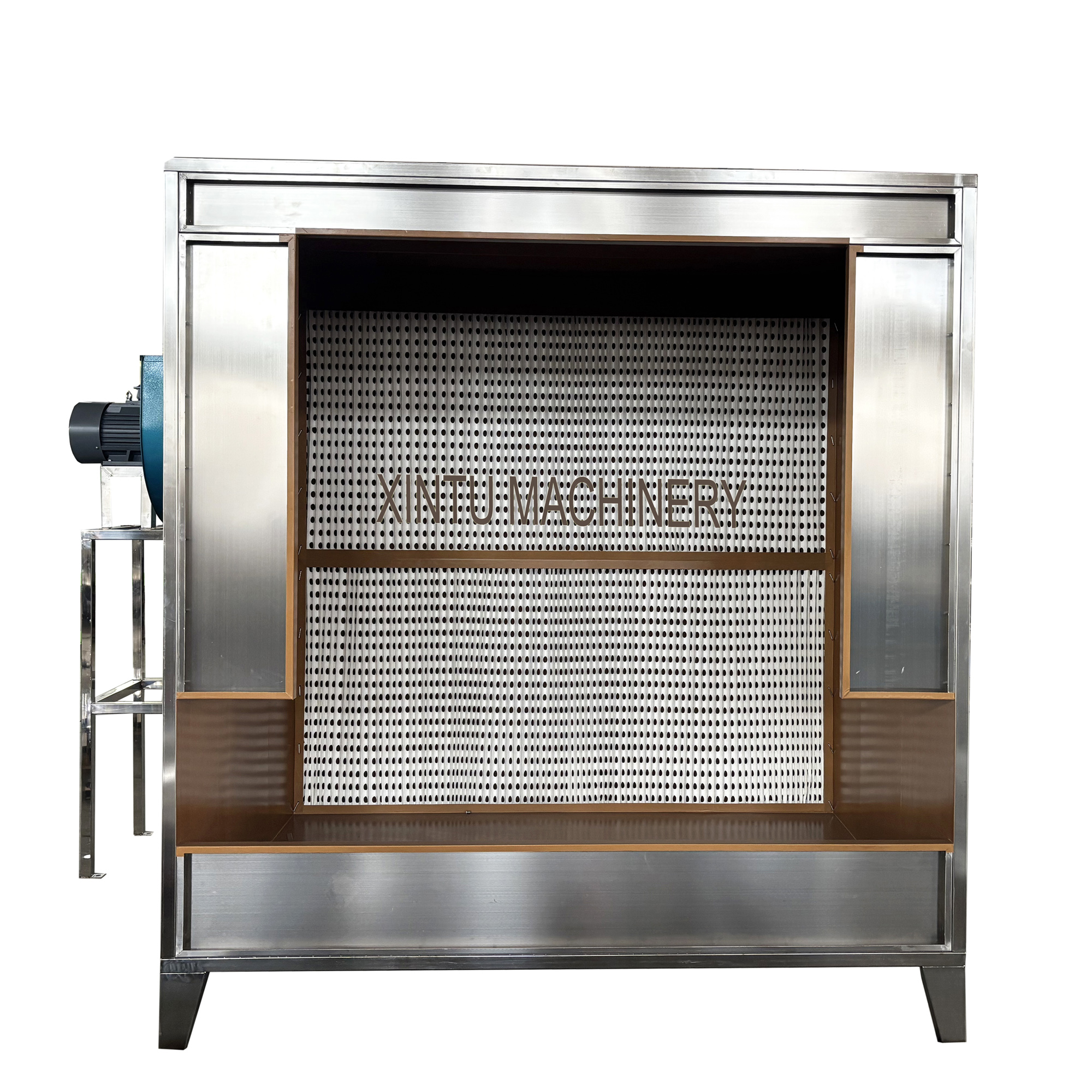

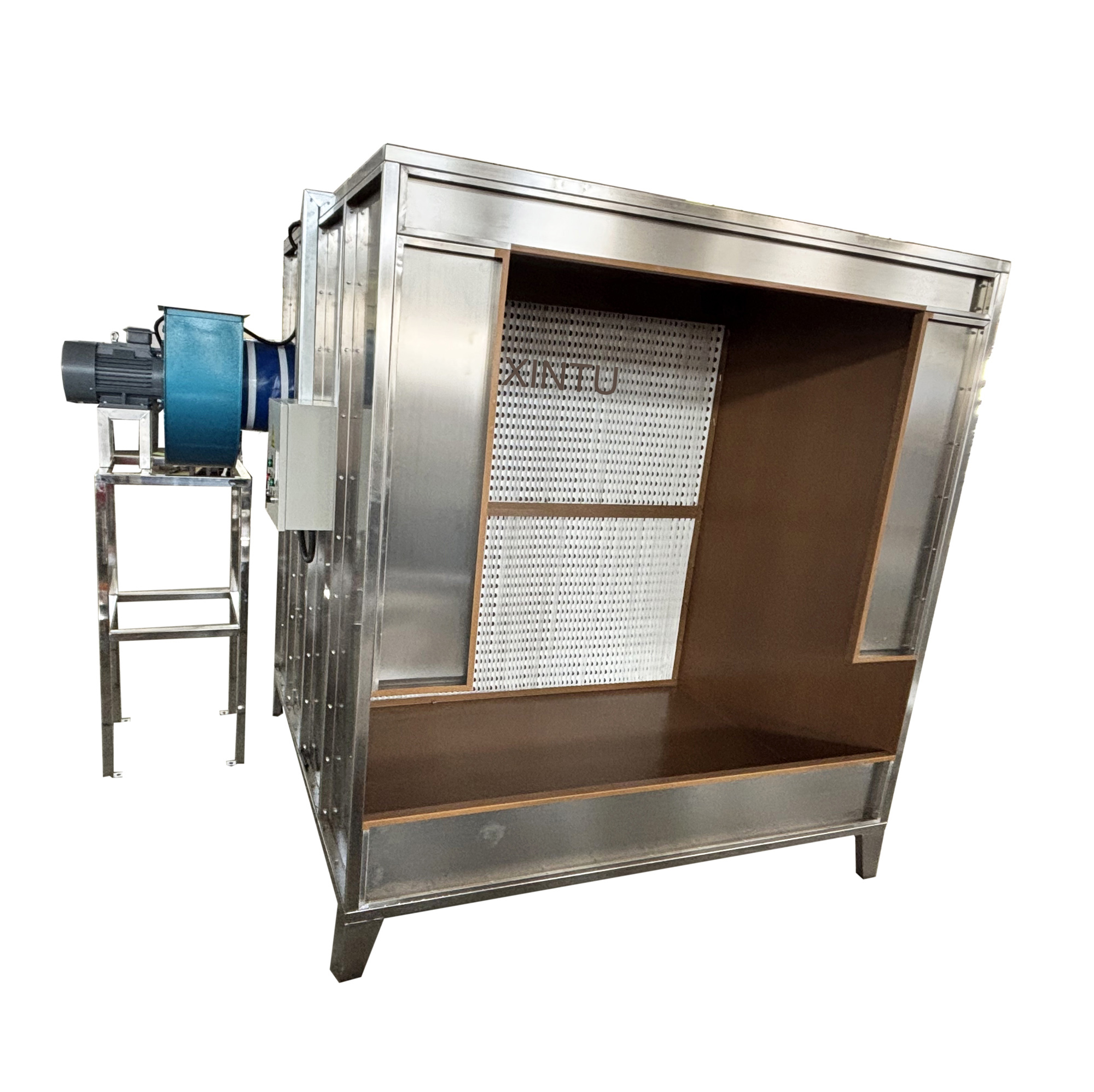

Dry-type Glue Spray Booth/ Painting Booth
Be used for glue spraying and priming on workpiece surface before flocking.
Dry-type Glue Spray Booth / Painting Booth
The cabin body is made of 304# stainless steel, with a dry filter paper box inside for capturing and filtering adhesive.
A supply air box is installed at the top of the chamber to provide supplementary air to the workshop.
Air consumption:7350m³/h
Dimensions of Booth body: W2200 xD2000 x H 2400mm
Power Supply 415V, 3 Phases (As per request )
Frequency: 50Hz (As per request )
Fan Power: 5.5 KW
Electrical control box: 1
